特性
規格
下載

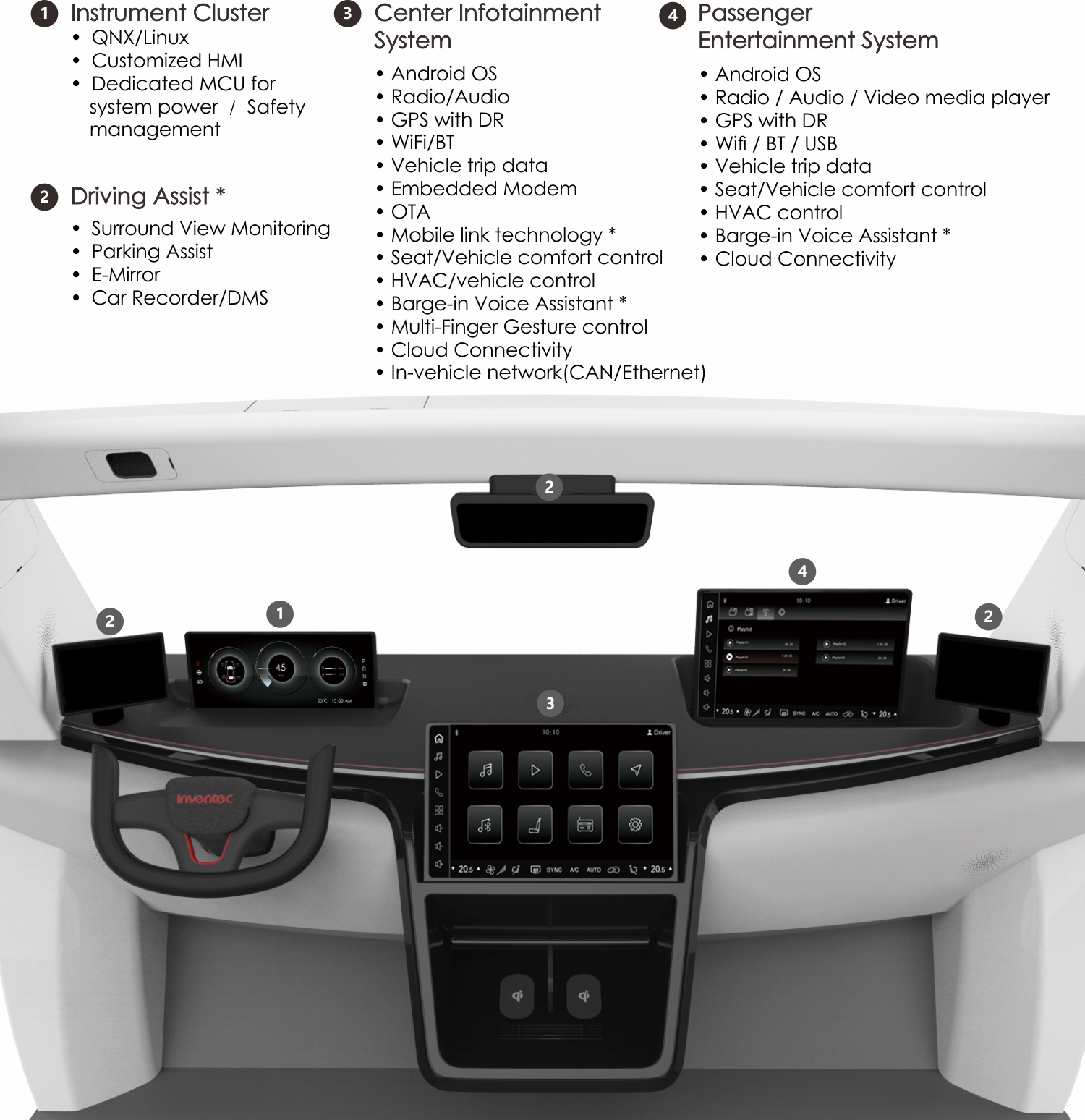

儀表顯示系統（Instrument Cluster）
|
中央資訊娛樂系統
|
乘客娛樂系統
|
駕駛輔助系統（Driving Assist）*
|

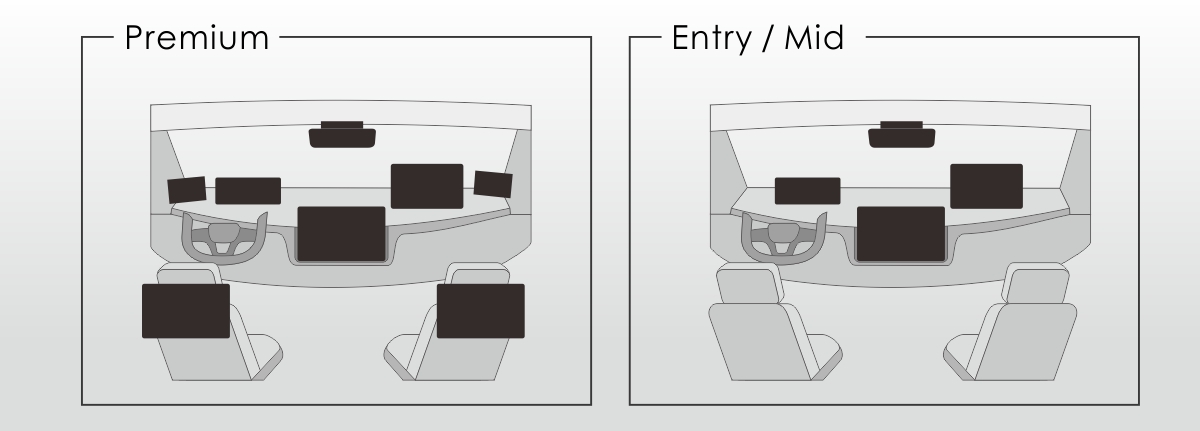

| Premium | Entry/Mid | |
| SOC | QAM 8295PS | QAM 8295PS |
| Software | QNX, Android | QNX, Android |
| Memory |
32G LPDDR4 |
16G LPDDR4 |
| Storage |
256 GB UFS 3.1 |
128 GB UFS 3.1 |
| Audio Interface | 4x Analog Mic input 2X Line in A2B interface (Digital MIC/AMP input/output) |
2x Analog Mic input 2x Line in A2B interface (Digital MIC/AMP input/output) |
| Display | 8X GMSL2 serializer outputs (8 Displays) Resolution: 2K x5, HD x2, FHD x1 |
4x GMSL2 serializer outputs (4 Display) Resolution: 2K |
| Camera | 12x GMSL2 cameras (2MP/60fps) inputs via triple GMSL2 to CSI De-serializer |
8x GMSL2 cameras (2MP/60fps) inputs via dual GMSL2 to CSI De-serializer |
| Vehicle Interface | 1x 1000Base-T1 2x 100Base-T1 4x CAN FD 2x LIN |
1x 1000Base-T1 1x 100Base-T1 4x CAN FD 2x LIN |
| I/O Interface | 1x USB 3.1 Type A 2x USB 3.1 Type C 2x Mini Display port 1x SlimSAS PCIe 1x Mini HDMI Receiver |
2x USB 3.1 Type C |
| Feature | Cluster: Customized HMI IVI: Radio/Audio GPS WiFi 6/BT 5.2 OTA CarPlay/Android Auto HVAC Voice Command Driver Monitoring/SVM E-mirror Car Recorder/DMS |
Cluster: Customized HMI IVI: Radio/Audio GPS WiFi 6/BT 5.2 OTA CarPlay/Android Auto HVAC Voice Command |
| Power Supply | Typical 12V DC, 6V to 20V DC | Typical 12V DC, 6V to 20V DC |
Title
Document Type
Date
e-Cockpit_Zeta_flyer_r01
Product Brief PDF
2025/08/18
