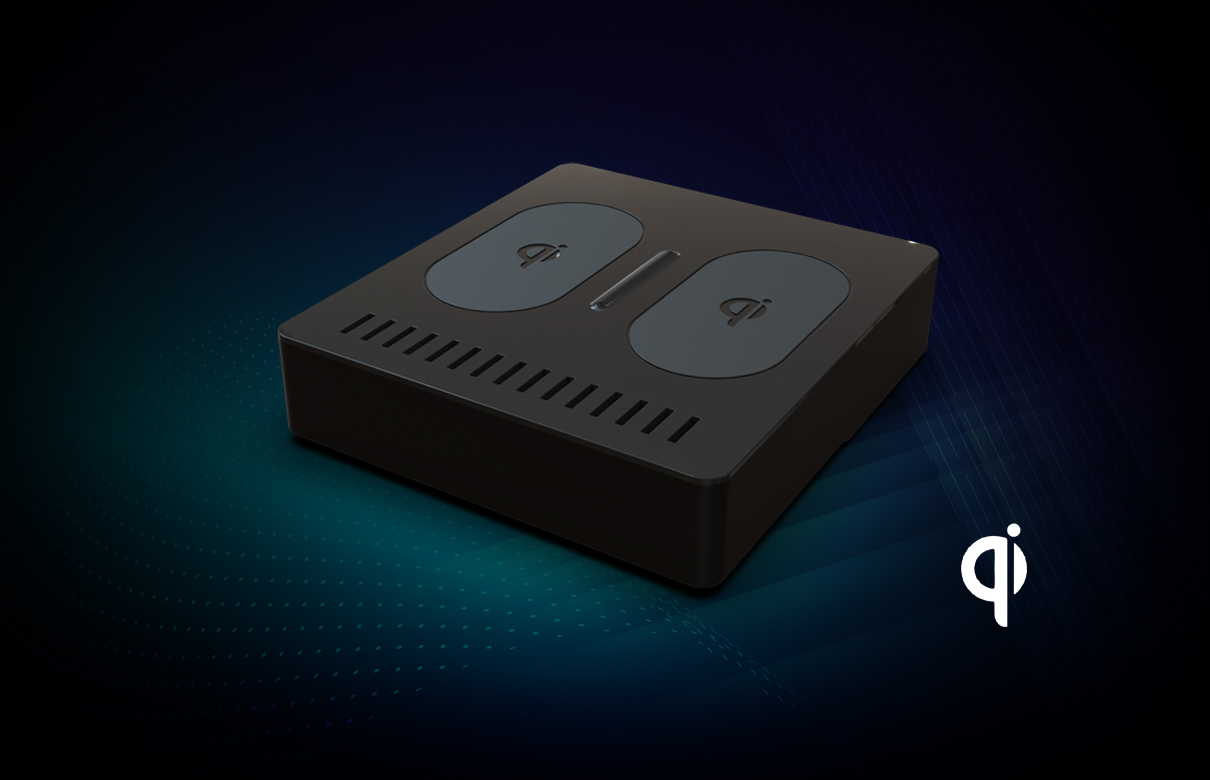

• WPC Qi Fast charging technology in Automotive
- Qi 1.2.4 certificated Qi ID : 13978
- Delivers up to 15 WATT fast charging , saving charging time
• Friendly user experience with
- Dual charging pad for driver and passenger side charging simultaneously.
- Enlarger area for free alignment position to charging space. (Multi-coils).
• High reliable safety protection with
- NFC card protection
- Foreign Object Detection (metal)
- Over temperature protection
• Smart Car access feature
- CCC Digital key 3.0 standard
- Bluetooth LE v 5.0 data communication and power management
- Ultra-wideband for smart key ranging and positioning
- NFC for contactless communication
• Upgradable function with
- OTA (Over the air programming) via CCU or CGW
- Vehicle CAN bus
- Qi 1.2.4 certificated Qi ID : 13978
- Delivers up to 15 WATT fast charging , saving charging time
• Friendly user experience with
- Dual charging pad for driver and passenger side charging simultaneously.
- Enlarger area for free alignment position to charging space. (Multi-coils).
• High reliable safety protection with
- NFC card protection
- Foreign Object Detection (metal)
- Over temperature protection
• Smart Car access feature
- CCC Digital key 3.0 standard
- Bluetooth LE v 5.0 data communication and power management
- Ultra-wideband for smart key ranging and positioning
- NFC for contactless communication
• Upgradable function with
- OTA (Over the air programming) via CCU or CGW
- Vehicle CAN bus
| Item | Description |
| WPC |
•QiV1.3 (V1.2.4 present)
•WPC Qi 1.2.4
•Max Power 15W *2
•Max Efficiency >65%
•MP-A13 Coils
|
| Electrical |
•BATT 6V~17V (BAT 12V)
•MAX 7.41A
•Standby <100mA
|
| SW |
•AutoSAR Ready
•Update by CAN bus
|
| NFC | •ISO14443A/ B, iSO15693 and FeliCa, ISO 18092(NFCIP- 1) |
| BLE |
•2.4 GHz Bluetooth Low Energy (Bluetooth LE) version 5.0
|
| UWB |
•low‑energy
•IEEE 802.15.4 HRP UWB PHY and IEEE draft 802.15.4z BPRF/HPRF UWB PHY
•Distance to a precision of up to 10 cm
|
| Temperature |
•Operation Temp -40~85°C
•FOD Support Q factor and PWR loss detection
•Active Cooling
|
| Mechanical |
•190mm x170mm x50mm
•~500g
|
| EMC |
•ECE R10.05
|
| CCC Digital Key 3.0 |
•Unlock / Lock the Vehicle
•Digital Key Console
|
