WPC Qi Fast charging technology in Automotive
  • Qi 1.2.4 certificated Qi ID : 13978
  • Delivers up to  15 WATT fast charging , saving charging time

Friendly user experience with

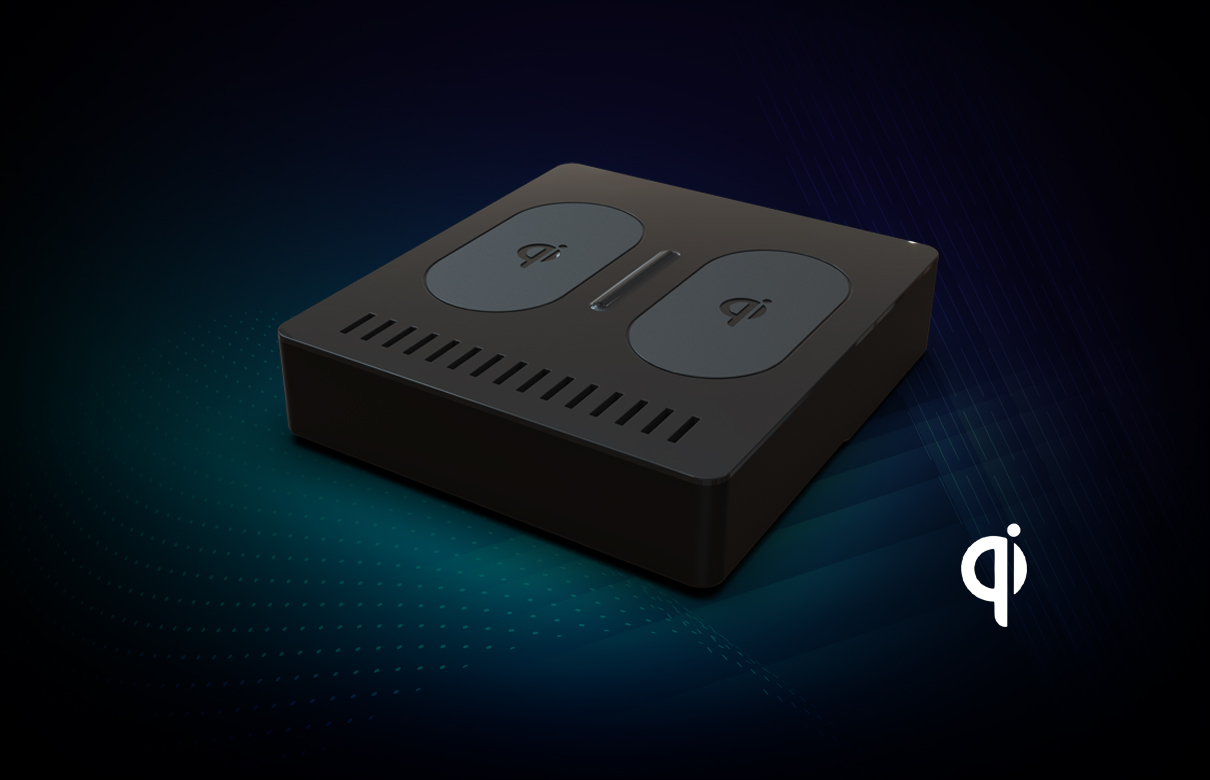

  • Dual charging pad for driver and passenger side charging simultaneously.
  • Enlarger area for free alignment position to charging space. (Multi-coils).

High reliable safety protection with
  • NFC card protection
  • Foreign Object Detection (metal)
  • Over temperature protection

Smart Car access feature
  • CCC Digital key 3.0 standard
  • Bluetooth LE v 5.0 data communication and power management
  • Ultra-wideband for smart key ranging and positioning
  • NFC for contactless communication

Upgradable function with
  • OTA (Over the air programming) via CCU or CGW
  • Vehicle CAN bus
Item Description
WPC
  • WPC Qi 1.2.4
  • Max Power 15W*2
  • Max Efficiency > 65%
  • MP-A13 Coils
Electrical
  • BATT 6V~17V (BAT 12V)
  • MAX 7.41A
  • Standby <100mA
SW
  • AutoSAR Ready
  • Update by CAN bus
NFC
  • ISO14443A/ B, iSO15693 and FeliCa, ISO 18092(NFCIP- 1)
BLE
  • 2.4 GHz Bluetooth Low Energy (Bluetooth LE) version 5.0
UWB
  • low-energy
  • IEEE 802.15.4 HRP UWB PHY and IEEE draft 802.15.4z BPRF/HPRF UWB PHY
  • Distance to a precision of up to 10 cm
Temperature
  • Operation Temp -40~85 ℃
  • FOD Support Q factor and PWR loss detection
  • FAN for Cooling
Mechanical
  • 190mm x170mm x50mm
  • ~500g
EMC
  • ECE R10.05
CCC Digital Key 3.0
  • Unlock / Lock the Vehicle
  • Digital Key Console
Title
Document Type
Date
wcm_marchal_flyer_r01
Product Brief
2025/07/03
For detail technical data sheet, please contact our customer service : https://ame.inventec.com/support
